Kumbhi Power Project |
LOCATION
1 | State | Maharashtra |
2 | Region | Western Maharashtra |
3 | District | Kolhapur |
4 | Taluka | Gaganbavda |
5 | Village | Lakmapur |
6 | Topo sheet no | 47-H/15 |
7 | Latitude | 16° -31’-29”(N) |
8 | Longitude | 73° -51’-49”(E) |
9 | River | Kumbhi river |
10 | Basin | Krishna Basin |
11 | Approach | 100km From warananagar |
HYDROLOGY AND WATER PLANNING
1 | Catchment area | 21.20 Sq.km |
2 | Average annual rainfall | 5407.54 mm |
3 | 75% dependable yield | 94.490 Mcum |
4 | Avg.annual yield | |
5 | Gross annual utilisation | 84.290Mcum |
6 | Net utilasation | 79.170 Mcum |
7 | Lake losses | 5.12 Mcum |
DAM & RESERVOIR
1 | Gross stroage | 76.880 Mcum |
2 | Dead stroage | 0.384 Mcum |
3 | Live stroge | 76.496 Mcum |
CONTROLLING LEVELS
1 | T.B.L | 614.700 m |
2 | M.W.L(H.F.L) | 612.700 m |
3 | F.R.L | 612.200 m |
4 | M.D.D.L(Irrigation) | 578.500 m |
5 | M.D.D.L(power) | 593.600 m |
6 | River bed | 572.120 m |
7 | T.W.L(Max) | 573.600 m |
8 | T.W.L(Min) | 572.600 m |
9 | T.W.L(Avg) | 573.100 m |
10 | Type of Dam | Earthen dam |
11 | Length of Dam earthen | 906m |
12 | Length of spillway masonary |
DETAILS OF IRRIGATION OUTLET
1 | No of head regulator | ONE |
2 | Location of head regulator | 540m |
3 | Design discharge | 10 Cumecs |
4 | Sill level of outlet | 573.500 m |
HYDRO POWER DETAILS INTAKE STRUCTURE
1 | Location | 540 m |
2 | Intake still level | 578.50 m |
3 | Center line of penstock | 579.50 m |
4 | At power house end | 572.30 m |
5 | No of penstock | ONE |
6 | Dia of penstock | 2 m |
7 | Length of penstock | 170.50m |
8 | Extended penstock length | 20 m Ex 'Y'piece |
9 | Thickness of plate | 12.00 m |
10 | Designed discharge capacity | 10.00 Cumecs |
11 | Emergency gate | 3.2 x 2.5 m |

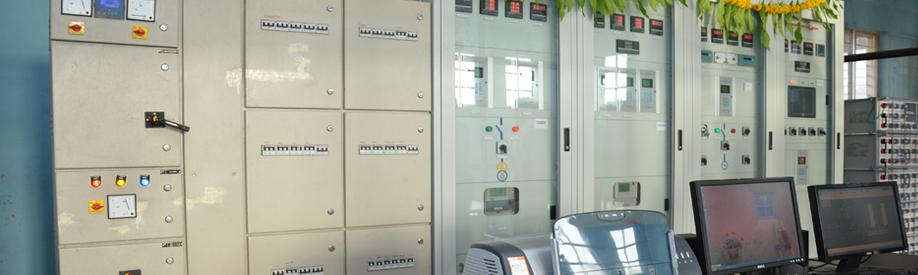

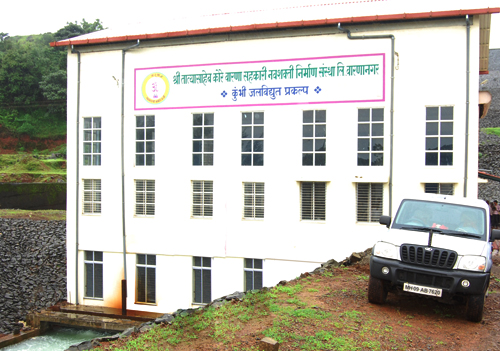

POWER HOUSE,PLANT,SWITCHYARD
1 | Location | 20m From Y piece |
2 | Powerhouse Size | 12.0 x 9.0 m |
3 | No of units and installed capacity | ONE x 2.5 MW |
4 | Maximum head(Net) | 39.10m |
5 | Minimum head(Net) | 20.80m |
6 | Design head | 32m |

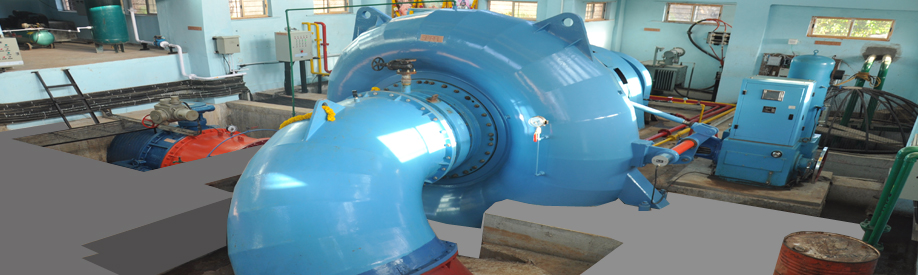

7 | Type of turbine | Horizantal shaft Francis |
8 | Design discharge of m/c | 9.16 m'3/sec |
9 | Speed | 428.60rpm |
10 | Center line of machine | 573.80m |
11 | Service bay level | 578.00m |
12 | Machine hall level | 572.50m |
13 | Generation voltage | 6.3 kv |
14 | Unit Generated @ 75% dependable yield | 4.1474 Mus |
15 | D.T.Gate | 3.5 x 2.2 |
16 | Switch yard | 25 x 9 m |
POWER TAIL CHANNEL
1 | Bed width | 4.50m |
2 | F.S.D | 1.0m |
3 | Length | 150m |
4 | Design discharge | 10.00Cumecs |
5 | Bed gradient of TRC | 0.388888889 |
6 | Side slope | 0.5 : 1 |
7 | CBL of TRC @ start | 572.6 |
8 | CBL@ end |
